Replacement Tie Rod End

Replacement Tie Rod End

Aupart Tie Rod Ends are offered as part of the standard passenger vehicle and 4WD range.
Aupart have a huge range of Replacement Tie Rod Ends available, below is a brief listing of the key numbers compatible with Nissan Patrol & Toyota Land Cruisers.

  • Product Specifications
PartNumber Application Ends Suits Rod Thread Length
NISSAN
AT0034HD NISSAN PATROL GQ Y60 87-98 OUTER LH Male AT0533 22*1.5 LH 113mm
AT0033HD NISSAN PATROL GQ Y60 87-98 OUTER RH Male AT0533 22*1.5 RH 113mm

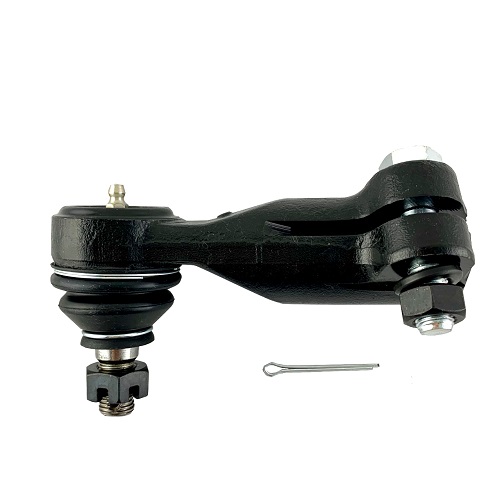

AT0345HD NISSAN PATROL GQ Y60 92-97 OUTER LH (Greasable) Female AT0773/ AT0501/ AT0710/ AT0778 30*1.5 LH 123mm

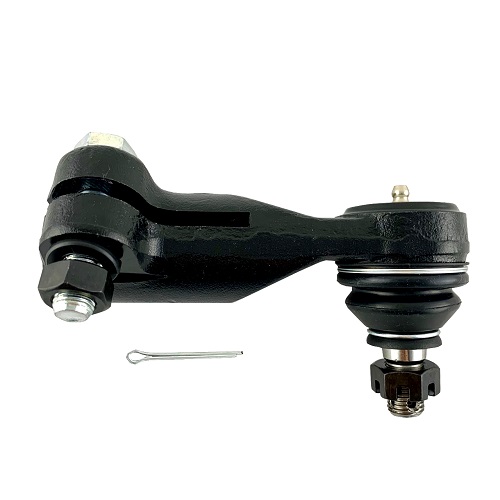

AT0346HD NISSAN PATROL GQ Y60 92-97 OUTER RH (Greasable) Female AT0773/ AT0501/ AT0710/ AT0778 30*1.5 RH 123mm
AT0415HD NISSAN PATROL GQ-GU Y60-Y61 99-00 OUTER LH Male AT0543 20*1.5 LH 150mm
AT0414HD NISSAN PATROL GQ-GU Y60-Y61 99-00 OUTER RH Male AT0543 20*1.5 RH 150mm
AT0411HD NISSAN PATROL GU 00-02 OUTER LH Female AT0779 30*1.5 LH 123mm
AT0410HD NISSAN PATROL GU 00-02 OUTER RH Female AT0779 30*1.5 RH 123mm
AT0413HD NISSAN PATROL GU 03-10 OUTER LH Female AT0754/ AT0797/ AT0809/ AT0663 30*1.5 LH 137mm
AT0412HD NISSAN PATROL GU 03-10 OUTER RH Female AT0754/ AT0797/ AT0809/ AT0663 30*1.5 RH 137mm
TOYOTA
AT0175HD TOYOTA LAND CRUISER 80/105 SERIES 90-07 RH END ONLY (RHD Only) Male with hole AT0728 21*1.5 LH 185mm
AT0176HD TOYOTA LAND CRUISER 80/105 SERIES 90-07 RH END ONLY Male AT0728 21*1.5 RH 143mm
AT0179HD TOYOTA LAND CRUISER 76/78/79/80/105 SERIES 90-07 RH & LH END Male AT0729/ AT0780/ AT0810/ AT0812 23*1.5 LH 103mm
AT0178HD TOYOTA LAND CRUISER 76/78/79/80/105 SERIES 90-07 RH & LH END Male AT0729/ AT0780/ AT0810/ AT0812/ AT0782 23*1.5 RH 103mm
AT0183 TOYOTA LAND CRUISER 75/76/78/79 LH END ONLY Male AT0811/ AT0781/ AT0813 21*1.5 RH 130mm
AT0184 TOYOTA LAND CRUISER 75/76/78/79 RH END ONLY Male with hole AT0811/ AT0781/ AT0813 21*1.5 LH 188mm
AT0182HD TOYOTA LAND CRUISER 75 SERIES LH END ONLY (RHD Only) Male with hole AT0782 23*1.5 LH 160mm
