Drag Link/ Track Rod/ Relay Rod

Drag Link/ Track Rod/ Relay Rod

Aupart offer a full range of Heavy Duty Drag Links and Track Rods to suit for a heap of 4WD’s. It’s not a case of ‘one style for all’ at Aupart. The range includes a ‘Startup’ upgraded version, a ‘Serious’ 4WD version, and the ultimate ‘MF Comp’ style in 4140 Chromoly Steel. Compatible with common Land Cruisers and Patrols. Even the ‘Startup’ version for Patrols is a huge upgrade over standard, featuring 30mm OD with 6.5mm wall thickness, in addition to Heavy Duty replaceable tie rod ends.

  • Product Feature
  • Product Specifications

When purchasing genuine Land Cruiser Track & Relay Rods, you must buy the rod separate to the ends. Aupart offer a complete "upgraded‟ solution in the one purchase!

PartNumber Description Application Version Tie Rod Ends OD(mm) Wall Thickness
NISSAN
AT0710 Track Rod NISSAN PATROL GQ Y60 87-97 Startup/Serious AT0345HD/AT0346HD 30 6.5

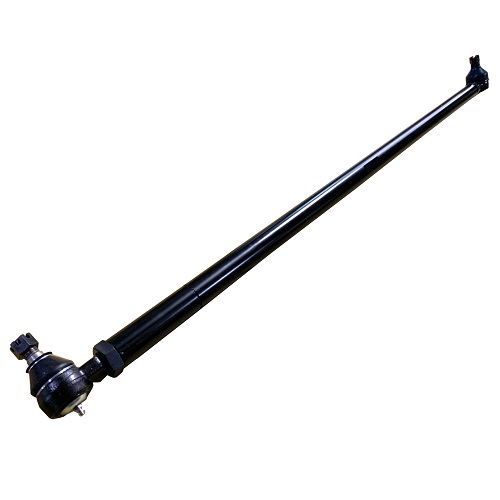

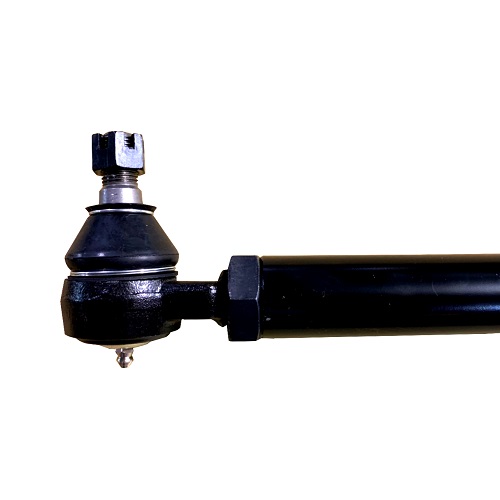

AT0533 Drag Link NISSAN PATROL GQ Y60 87-97 w/DAMPER BRACKET Startup AT0033HD/AT0034HD 32 5.6

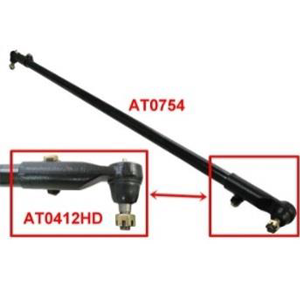

AT0754 Track Rod NISSAN PATROL GU Y61 97-10 Startup/Serious AT0412HD/AT0413HD 30 6.5
AT0543 Drag Link NISSAN PATROL GU Y61 97-10 w/DAMPER BRACKET Startup AT0414HD/AT0415HD 30 6.5
AT0621HD Idler Arm Bracket NISSAN NAVARA D22 97-04 Cross Rod w/AX0407 Startup/Serious Fixed 34 6.5
TOYOTA
AT0728 Relay Rod TOYOTA LAND CRUISER 80-105 SERIES (RHD Only) Startup AT0175HD/AT0176HD 30 5.7
AT0728LHD Relay Rod TOYOTA LAND CRUISER 80-105 SERIES (LHD Only) Startup AT0176HD/AT1142HD 30 5.7
AT0729 Track Rod TOYOTA LAND CRUISER 80-105 SERIES Startup AT0178HD/AT0179HD 34 6.5
AT0781 Relay Rod TOYOTA LAND CRUISER 75 SERIES (RHD Only) Startup AT0183/AT0184 30 5.7
AT0781LHD Relay Rod TOYOTA LAND CRUISER 75 SERIES (LHD Only) Startup AT0183/AT0344 30 5.7
AT0782 Track Rod TOYOTA LAND CRUISER 75 SERIES (RHD Only) Startup AT0178HD/AT0182HD 34 6.5
AT0782LHD Track Rod TOYOTA LAND CRUISER 75 SERIES (LHD Only) Startup AT0178HD/AT0338 34 6.5
AT0813 Relay Rod TOYOTA LAND CRUISER 78/79 SERIES 6cyl (RHD Only) Startup AT0183/AT0184 30 5.7
AT0810 Track Rod TOYOTA LAND CRUISER 78/79 SERIES 6cyl Startup AT0178HD/AT0179HD 34 6.5
AT0811 Relay Rod TOYOTA LAND CRUISER 76/78/79 SERIES V8 Startup AT0178HD/AT0182HD 30 5.7
AT0812 Track Rod TOYOTA LAND CRUISER 76/78/79 SERIES V8 Startup AT0178HD/AT0179HD 34 6.5
AT0834 Track Rod TOYOTA HILUX 83-90 Startup AT0147/AT0148 30 5.15
AT0835 Track Rod TOYOTA HILUX 90-97 Startup AT0195HD/AT0196HD 30 5.15
AT0548 Drag Link TOYOTA HILUX 83-97 (Standard) Startup Repair kit only 20 Solid
AT0831 Drag Link TOYOTA HILUX 83-97 (Suit 3-5" Lift) Startup/Serious Repair kit only 28.6 4.65
JEEP
AT0818 Centre Rod JEEP CHEROKEE XJ 94-04,
JEEP GRAND CHEROKEE ZJ/ZG 93-98,
JEEP WRANGLER TJ 97-06
Startup N/A 30 7.5
