Transmission Spacer

Transmission Spacer
The Aupart Transmission Spacer Kits provide a fix to aid in controlling the driveline vibration and noise after a lift is installed.
  • Product Feature
  • Product Specifications
AX0420 - Ford Ranger & Mazda BT50

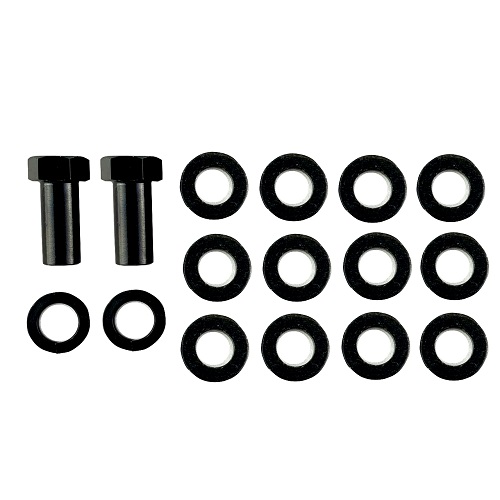

The Ranger/BT50 centre bearing spacers are applied to the u shaped cage that holds the centre bearing into position, and effectively lowers the cage, and centre bearing, down to take the angle out of the pinion. The kit is supplied complete with 12 x 3.9mm spacer washers, to suit for the spacing requirement identified (from 3.9mm to 23.7mm), depending upon your lift. All lift kits quoted for Ford Ranger/Mazda BT50 should include a Centre Bearing Spacer Kit, because driveline vibration can be experienced even with the smallest lifts.

AX0323 - Nissan Patrol

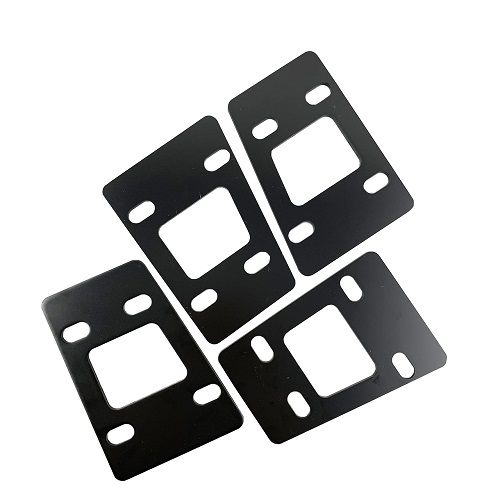

The Patrol transmission spacer plates fit neatly between the transmission plate and the chassis, and works by spacing down the driveline thus reducing driveline angle affected with the lift. The Aupart kit includes 4 precision cut 6mm spacer plates, and fitting hardware to suit (extended bolts). The four spacers allow you to run either 6mm or 12mm spacers depending upon your lift.
Part Number Application Spacer Lift
AX0649 FORD RANGER PJ/PK 06-11, MAZDA BT-50 GEN1 06-11 TRANSMISSION SPACER 2"+
AX0420 FORD RANGER PX 11-15, MAZDA BT-50 GEN2 11-15 CENTER BEARING SPACER KIT 2"+
AX0323 NISSAN PATROL GQ 87-97 Y60 4WD TRANSMISSION SPACER 2"+
AX0618 NISSAN PATROL GU 97-10 Y61 (w/Spacers) TRANSMISSION SPACER 2"+
