Tail Shaft Spacer

Tail Shaft Spacer
IS YOUR MANUAL ML TRITON SUFFERING FROM SIGNIFICANT DRIVELINE VIBRATION FOLLOWING A SUSPENSION LIFT? THIS IS MOST LIKELY DUE TO THE FACT THAT THE MANUAL ML TRITON HAS A TWO PIECE DRIVE SHAFT WITH CENTRE BEARING. YOUR MATE IN THE AUTO ML TRITON, WITH THE SAME LIFT, WILL NOT HAVE THE SAME ISSUES BECAUSE THE AUTO VERSIONS HAVE A SINGLE PIECE DRIVE SHAFT.

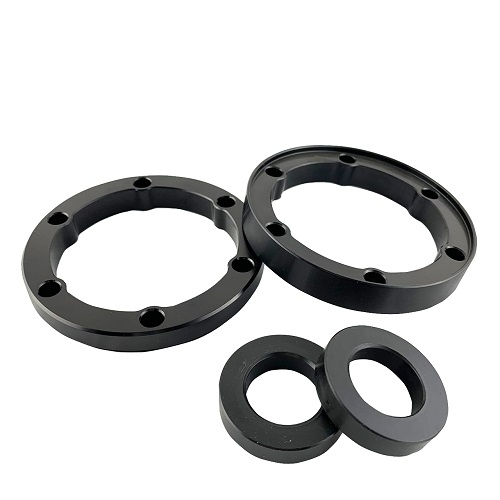

AUPART 13.25MM DIFF SPACER IS FITTED BETWEEN THE REAR DRIVE SHAFT AND THE DIFF, OWERING THE BEARING BY 5-8MM, AND COMPENSATES FOR THE ABSENCE OF A SLIP JOINT IN THE DRIVE SHAFT PROLONGING THE LIFE OF THE CENTRE BEARING. IN EXTREME CASES IT WILL NOT FIX VIBRATION ISSUES.
  • Product Specifications
Part Number Application Location Dimension Lift
AX0659 FORD RANGER PX 11-15, MAZDA BT-50 GEN2 11-15 Front 12.5mm 2"+
AX0625 FORD RANGER PX 11-15, MAZDA BT-50 GEN2 11-15 Front 12mm 2"+
AX0598 HOLDEN COLORADO RC 08-11 2WD&4WD Rear 25mm 2"+
AX0598 ISUZU D-MAX 08-12, RODEO 83-03 Rear 25mm 2"+
AX0374 MITSUBISHI TRITON ML-MN 06-15 Rear 13.25mm 2"+
AX0545 NISSAN PATROL GU 97-10 Y61S Front&Rear 25mm 2"+
AX0544 TOYOTA LAND CRUISER 80/100/105 SERIES 90-07 Front&Rear 25mm 2"+
AX0597 TOYOTA LAND CRUISER FZJ/HZJ Front 25mm 2"+
AX0596 TOYOTA LAND CRUISER FZJ/HZJ Rear 25mm 2"+
