Torque Arm

Torque Arm
When raising a leaf front & rear spring Hilux, the Aupart Torque Arm should be installed!

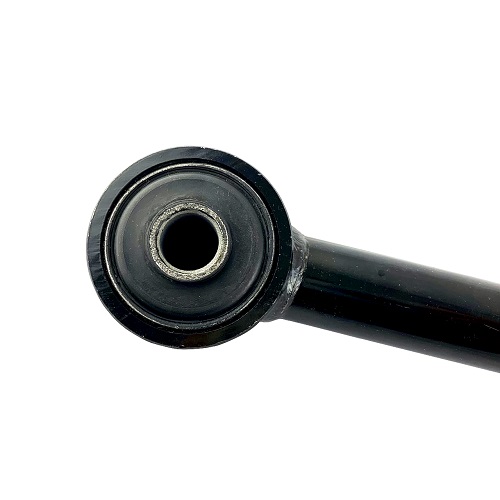

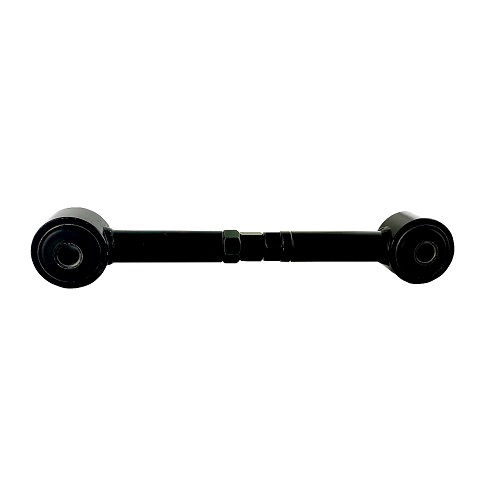

Basically the Aupart Torque Arm acts as a diff locater, and adjusts the location of the diff to prevent preloading of the front suspension. Using the standard torque arm on a raised Hilux will constrict the front suspension. The Aupart Torque Arm comes complete with High Flex Rubber Bushings for maximum articulation, and adjustability to suit heights up to 3”.
  • Product Specifications
Part Number Application Suit Lift
AT0859 TOYOTA HILUX 83-97 4WD Up to 3"


Part Number Application to Suit
KB120 TOYOTA HILUX 83-97 4WD AT0859
