Extended Sway Bar Link And Extension

Extended Sway Bar Link And Extension
Aupart offer a range of upgraded extended Sway Bar Links for the Patrols and extensions for the 80/100 series Cruisers. If your Sway Bar is out of alignment, handling can be affected.
  • Product Feature
  • Product Specifications
AS0242 & AS0243 - cut to desired length to suit for 2 to 8" Lift.

Jeep
Some Jeep owners want more flex. The Aupart STBJK01A Sway Bar Disconnect has been designed with adjustability to suit a huge variety of lifts for the JK Wrangler from standard to 8" to cater to the 'more flex' market. It is supplied complete with brackets that you install to simply hook the sway bar onto, to keep the sway bar from dragging on the ground following disconnect.

Patrol
In addition to standard replacement sway bar links to suit for the Nissan Patrol, Aupart have designed and manufactured a version to suit lifts from 2-8". Aupart Heavy Duty 'Extended Thread' Patrol Sway Bar Links allow you to effectively trim the sway bar link to your desired length to provide adequate tail shaft clearance and sway bar alignment. Manufactured from Heavy Duty 16mm rod, Aupart Heavy Duty sway bar links offer both increased strength and increased stud articulation, providing for less stress on the sway bar links during wheel articulation.

Toyota

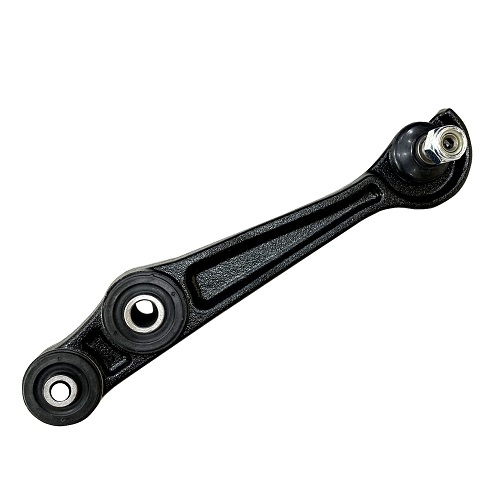

The new AS0667 has been designed and manufactured in a one piece forged design with OE item in function and appearance suited to Landcruiser KDSS 200 Series with 50mm+ suspension lift. AS0667 is a DIRECT replacement for the LH Rear Link. The new extended AS0666 (also now available) is to be used to accomodate the RH rear link requirements.
PartNumber Application Location Suit Lift
JEEP

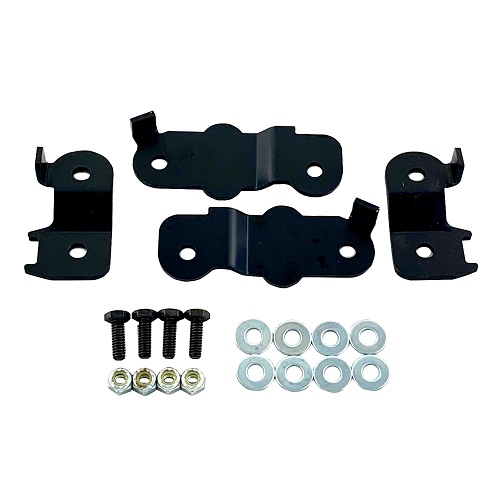

AX0651 JEEP WRANGLER JK 07-18 Brake Line Extension Bracket Kit   4"
AS0519 JEEP WRANGLER JK 07-18 Disconnect Kit Incl. Retention Brackets Front 2-8"
AS0213 JEEP WRANGLER TJ 97-06 (50mm Extended) Front 2"
AS0215 JEEP WRANGLER TJ 97-06 (50mm Extended) Rear 2"
NISSAN
AS0585E NISSAN NAVARA D40 05-16 2WD&4WD FRONT LH (30mm Extended) Front 3"+
AS0586E NISSAN NAVARA D40 05-16 2WD&4WD FRONT RH (30mm Extended) Front 3"+

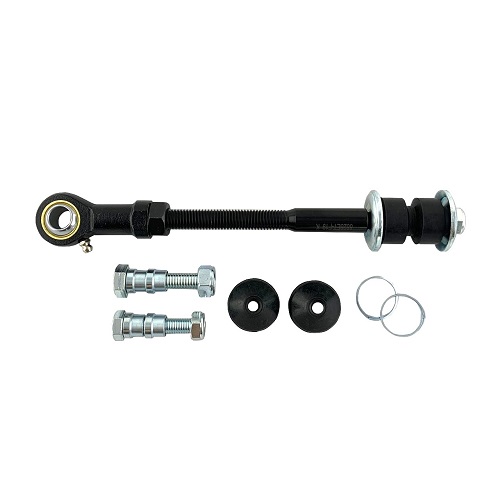

AS0242U NISSAN PATROL GQ 87-96 Y60 FRONT & REAR Front & Rear 2-8"

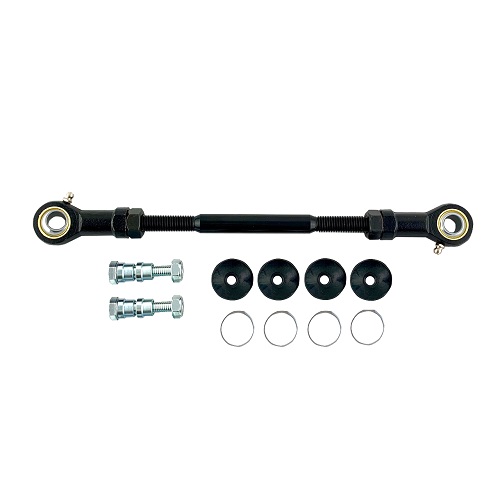

AS0243U NISSAN PATROL GU 97-10 Y61 REAR LH Rear 2-8"
AS0114E NISSAN PATROL GU 97-10 Y61 REAR RH (30mm Extended) Rear 2"+
AS0242U NISSAN PATROL GU 97-10 Y61 REAR RH, NISSAN PATROL GQ 87-96 Y60 FRONT&REAR Rear 2-8"
AX0555 SWAY BAR DISCONNECT PIN KIT (To Suit AS0242 & AS0243 Links)   2-8"
AX0555X SWAY BAR DISCONNECT RING PIN & RETAINER ONLY (To Suit AX0555)   2-8"
TOYOTA
AS0156E TOYOTA LAND CRUISER 100 SERIES (20mm Extended) AS0156E use with 48826-60010 standard rear sway bar bracket. Rear 2"

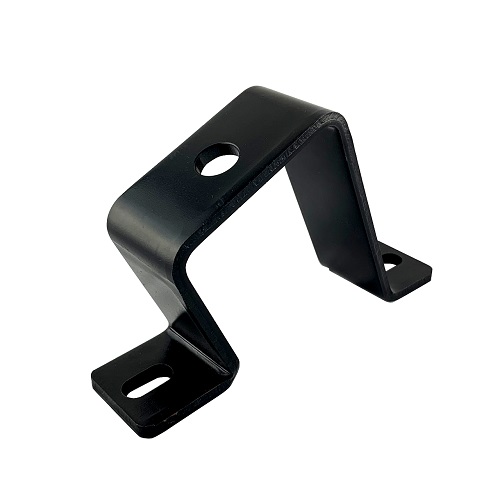

AX0285 TOYOTA LAND CRUISER 105 SERIES EXTENSION BRACKET (50mm) Rear 2-4"
AX0574 TOYOTA LAND CRUISER 70/80/100/105 SERIES EXTENSION BRACKET (25mm) Front 2"
AX0261 TOYOTA LAND CRUISER 70/80/100/105 SERIES EXTENSION BRACKET (50mm)
AX0261 will not suit 100 series with rear bracket 48826-60010.
Front 2-4"

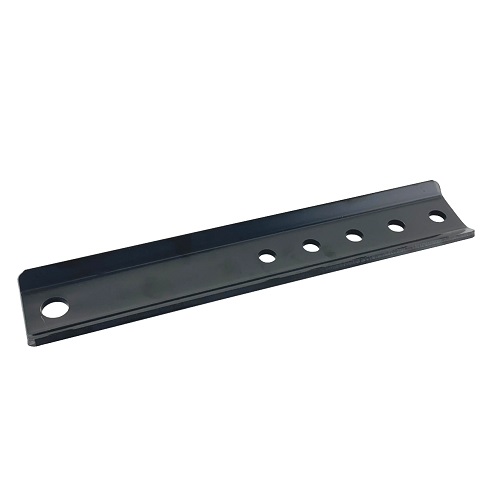

AX0262 TOYOTA LAND CRUISER 80/100 SERIES EXTENSION BRACKET (50mm) Rear 2-4"
AS0039E TOYOTA HILUX 95-on 4WD, TOYOTA LAND CRUISER 96-08, TOYOTA PRADO 96-08 (EXTENDED) FRONT/REAR
AS0548E TOYOTA HILUX 05-on 4WD, TOYOTA LAND CRUISER 02-on,
TOYOTA FJ CRUISER 06-on, TOYOTA PRADO 120/150 SERIES 03-on (30mm Extended)
FRONT LH
AS0549E JEEP WRANGLER TJ 97-06 (50mm Extended)TOYOTA HILUX 05-on 4WD, TOYOTA LAND CRUISER 02-on,
TOYOTA FJ CRUISER 06-on, TOYOTA PRADO 120/150 SERIES 03-on (30mm Extended)
FRONT RH

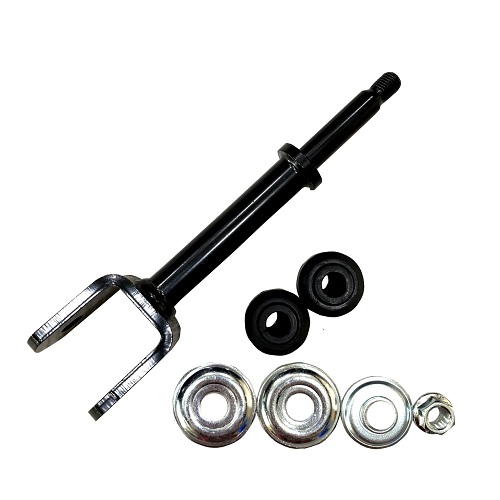

AS0666 TOYOTA LAND CRUISER 200 SERIES REAR RH
AS0667 TOYOTA LAND CRUISER 200 SERIES (KDSS MODEL) REAR LH
