Extended Shackle

Extended Shackle
If you are after more flex in your vehicles rear end, then extended shackles are an easy way to achieve it.

Basically the extended shackle creates a greater sweeping arc of the shackle which in turn provides for more wheel travel and a nicer ride. Aupart extended shackles are engineered to the highest standard, with factory size greasable pins (to allow installation of factory bushings) and 50mm extended plates.

All Aupart extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be over tightened, resulting in deformation of the bushings. Aupart extended shackles incorporate a great design feature to protect the grease nipple against damage from rocks and debris that could be encountered in the installed position.

Giving 50mm more length than the factory shackle you will also see a lift of between approx. 25-30mm (depending upon application). Sold in pairs.
  • Product Feature
  • Product Specifications

Give your vehicle an easy lift & fix that "nose dive" appearance by matching a pair of front coil strut spacers with rear extended shackles. the 25mm front coil spacers will give you approx. 37mm of lift and the 50mm rear extended shackles will give approx. 25-30mm, so you can slightly raise the vehicle, increase rear articulation and decrease the nose dive appearance. Extended or adjustable shackle plates must not be used to raise vehicles on leaf spring suspensions.

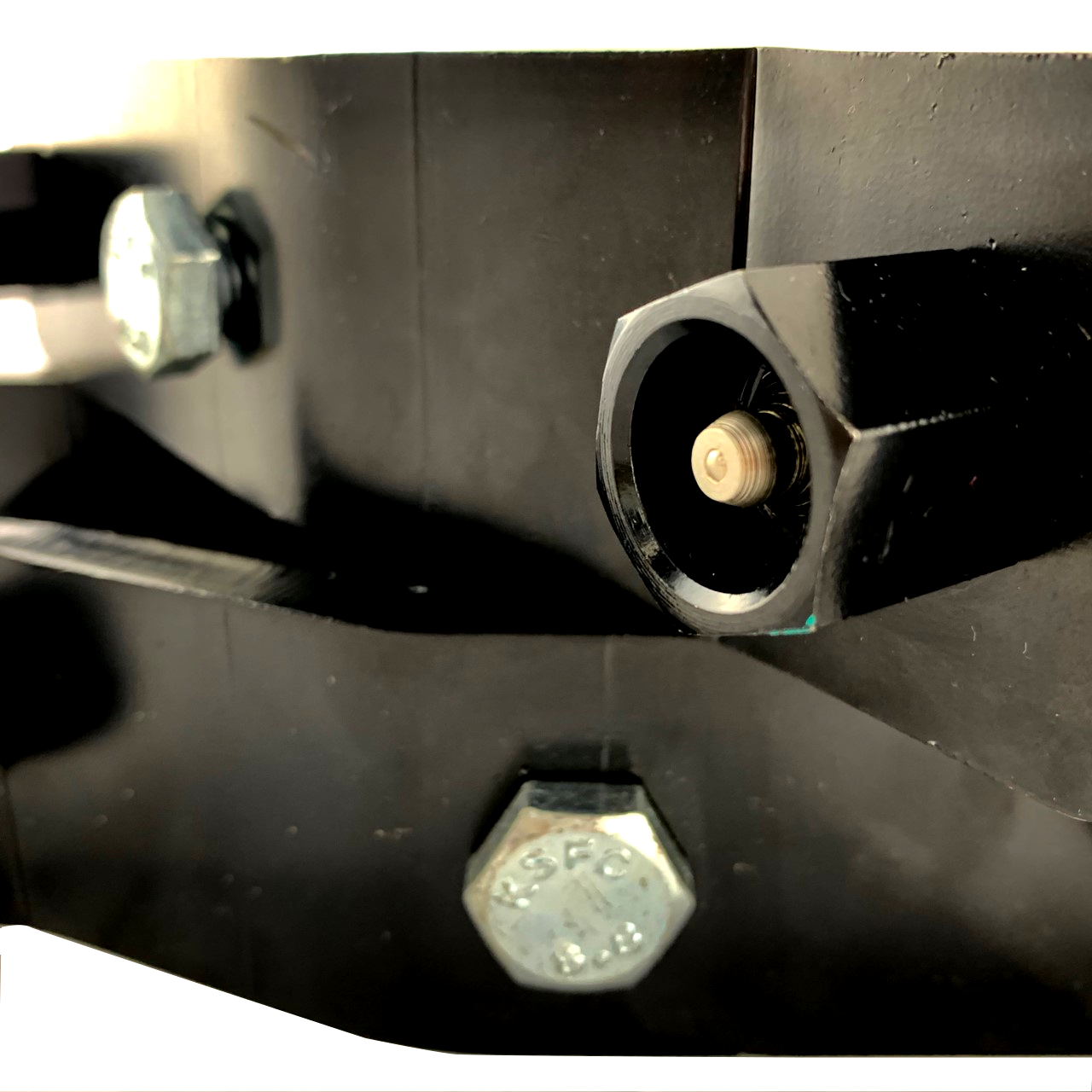

A GREASE NIPPLE PROTECTION TO AVOID DAMAGE FROM ROCKS AND DEBRIS.


It is recommended to fit a 3degree wedge to the front when using Extended Shackles.

Make Model Year Code Coil Strut Spacer Extended Shackle
FORD RANGER 2011-on PX AX0376 AX0416
HOLDEN COLORADO 2012-on RG AX0376 AX0388
ISUZU D-MAX 2012-on TFR AX0376 AX0388
MAZDA BT-50 2011-on Gen 2 AX0376 AX0416
MITSUBISHI TRITON 2006-on ML-MN AX0375 AX0378
MITSUBISHI TRITON 2016-on MQ AX0375 AX0609
NISSAN NAVARA 2005-on D40 AX0309 AX0335
TOYOTA HILUX 2005-on KUN AX0298 AX0398
TOYOTA HILUX 2015-on GUN AX0298 AX0604



PartNumber Application Location
FORD
AX0326 FORD RANGER PJ/PK 06-11 Rear
AX0416 FORD RANGER PX 11-15 Rear
HOLDEN
AX0417 HOLDEN COLORADO RC 08-11 2WD&4WD, HOLDEN JACKAROO 86-92,
HOLDEN RODEO 03-05 2WD, HOLDEN RODEO 87-07 4WD
Rear
AX0388 HOLDEN COLORADO RG 12-16 2WD&4WD Rear
AX0418 HOLDEN DROVER QB 85-87 4WD Front & Rear
AX0328 HOLDEN RODEO 05-09 4WD, TOYOTA HILUX 88-97 4WD Rear
ISUZU
AX0417 ISUZU D-MAX 02-12 Rear
AX0388 ISUZU D-MAX TFR 12-16, ISUZU MU-X 13-16 Rear
MAZDA
AX0326 MAZDA BT-50 GEN1 06-11 Rear
AX0416 MAZDA BT-50 GEN2 11-15 Rear

PartNumber Application Dimension
MITSUBISHI
AX0378 MITSUBISHI TRITON ML-MN 05-15 Rear
AX0609 MITSUBISHI TRITON MQ 16-on 4WD Rear
NISSAN

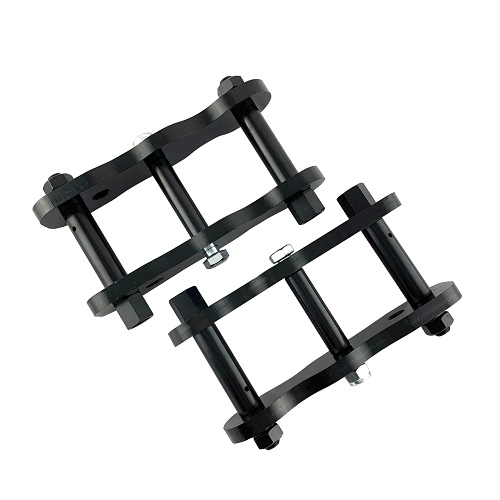

AX0393 NISSAN NAVARA D22 97-05 2WD, NISSAN NAVARA D22 97-13 4WD Rear
AX0636 NISSAN NAVARA D23 NP300 14-on Rear
AX0335 NISSAN NAVARA D40 05-16 2WD&4WD Rear
SUZUKI
AX0418 SUZUKI LJ SERIES 74-81, SUZUKI JIMNY 81-98 Front&Rear
TOYOTA

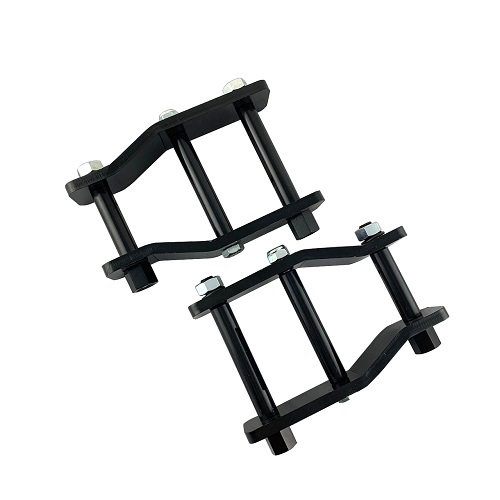

AX0327 TOYOTA HILUX 88-97 4WD Front
AX0328 TOYOTA HILUX 88-97 4WD Rear
AX0326 TOYOTA HILUX 91-00 4WD Rear
AX0398 TOYOTA HILUX KUN 05-15 Rear
AX0604 TOYOTA HILUX GUN 15-on 4WD Rear
AX0185 TOYOTA LANDCRUISER 75 SERIES 90-99 Rear
AX0377 TOYOTA LANDCRUISER 76/78/79 SERIES 99-16 Rear
