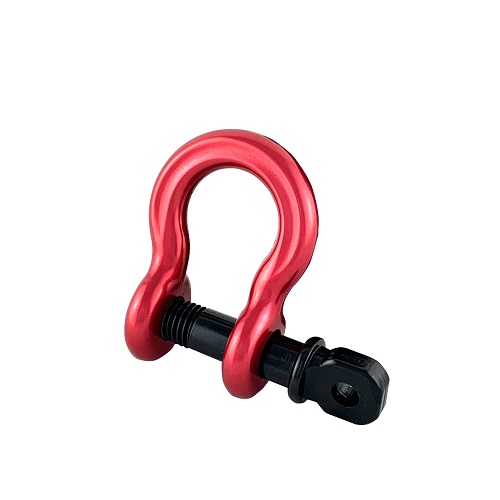

Bow Shackle

Shackles are an essential recovery item and you can never have too many of them. They are most commonly used to attach recovery straps, tree trunk protectors, winch extension straps & snatch blocks. The larger 4.7 tonne shackles are best suited to electric winch recovery situations.

The most commonly used shackle is the “Bow” because its shape allows for bulky items to be easily attached. Shackles should only be used on vehicles fitted with recovery rated points featuring closed eyelets.

Prev Back to List Next Inquiry

Product Feature
Product Specifications

TIP:
To avoid seizing the screw pin, its always a good idea to back off about 1/2 to 1 turn after fully hand tightening. Shackle pins can seize due to the force exerted during recovery operations.

Before use:
Inspect shackles before and after use for any damage. If pins are hard to turn or the shackle has been overstressed, it should be immediately replaced.

Caution:
Shackles can become a lethal missile if something should break or fail during a recovery. Ensure that all spectators are well clear and all recovery lines have a dampening blanket on them. Never load a shackle across its width because the load will be imposed on the threads. The force must be at right angles to the pin.

Part Number	Application	WLL (kgs)	Size
AX0428-2	HIGH VISIBILITY BOW SHACKLE - ALUMINUM	3250	16*19mm
AX0428-1	HIGH VISIBILITY BOW SHACKLE - ALUMINUM	4700	19*22mm
AX0305	HIGH VISIBILITY BOW SHACKLE - STEEL	3250	16*19mm
AX0306	HIGH VISIBILITY BOW SHACKLE - STEEL	4700	19*22mm
