Diff Drop Kit

Diff Drop Kit
When lifting IFS Vehicles, the Constant Velocity (CV) joints are put on an increased angle. This increased angle of the CV joint during operation can accelerate the wear on the joint, as well as putting additional stress on the CV boots leading to splitting and eventually premature failure of the CV. This wear is accelerated further if larger (wider) wheels and tyres are fitted.

The Aupart IFS Diff Drop Kits are application specific and supplied complete to get the job done. The bolt on kit corrects the geometry on the front driveshaft and CV’s, lowering the front diff by approx. 25mm, thus reducing the angles the CV joints need to operate on, and avoiding the expensive replacements of CV’s and boots. Allows the bash plate to be refitted.
  • Product Specifications
Part Number Application
AX0572 FORD RANGER PX 11-15
AX0540 HOLDEN COLORADO RG 12-16 2WD&4WD
AX0540 ISUZU D-MAX TFR 12-16, ISUZU MU-X 13-16
AX0572 MAZDA BT-50 GEN2 11-15
AX0564 NISSAN NAVARA D22 97-05 DIFF DROP KIT
AX0332 TOYOTA HILUX KUN 05-15 4WD, TOYOTA LAND CRUISER 02-on,
TOYOTA FJ CRUISER 06-on, TOYOTA PRADO 120 SERIES 03-09,
TOYOTA PRADO 150 SERIES 09-on

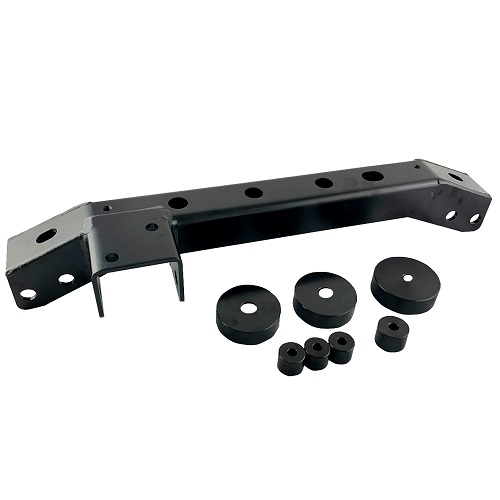

AX0187 TOYOTA LAND CRUISER 100 SERIES 98-07

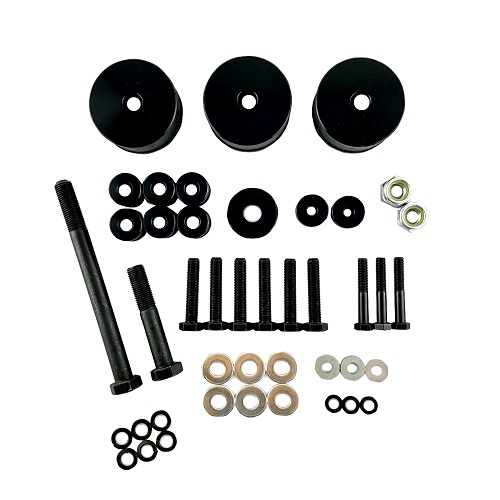

AX0367 TOYOTA LAND CRUISER 200 SERIES 07-15
AX0571 VOLKSWAGEN AMAROK 11-16
AX0673 UNIVERSAL BASH GUARD SPACER KIT
