Drop Box

Aupart Drop Boxes compatible with Patrol GQ-GU are designed to allow for the radius arms to be dropped slightly below the chassis to correct the caster geometry, correct articulation of the suspension components and improve ride.

Aupart Drop Boxes are designed to suit for 3-4” lifts. Aupart offer direct Bolt-In option for the Drop Boxes. No welding or cutting required.

Prev Back to List Next Inquiry

Product Feature
Product Specifications

Once fitted your Aupart Drop Boxes will:
• Level the radius arms allowing the wheels to better follow the track surface increasing occupant comfort & traction.
• Eliminate the preload on the rubber bushings permitting for greater flex & longer bushing life.
• Move the front diff forward approx. 10mm allowing clearance between tyre & guard (no need for Radius Arm Spacers when Drop Boxes are installed).
• Space the gear box cross member down approx. 8mm improving pinion angles.
• Give a smoother ride due to reduced resistance of suspension components in their natural arc

Direct Bolt-in option – no cutting required

Part Number	Application	Style	Suits Lift

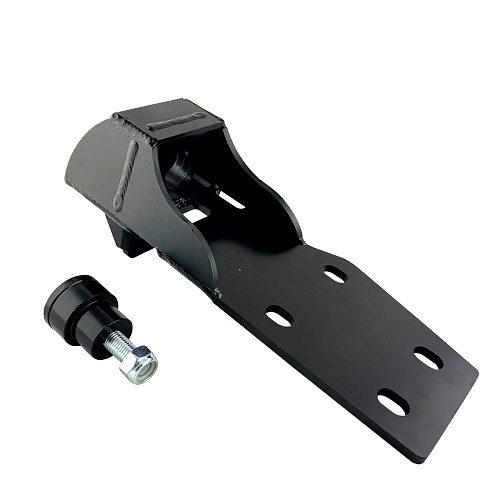

AX0353	NISSAN PATROL GQ-GU DROP BOX LH	Bolt-in	4"

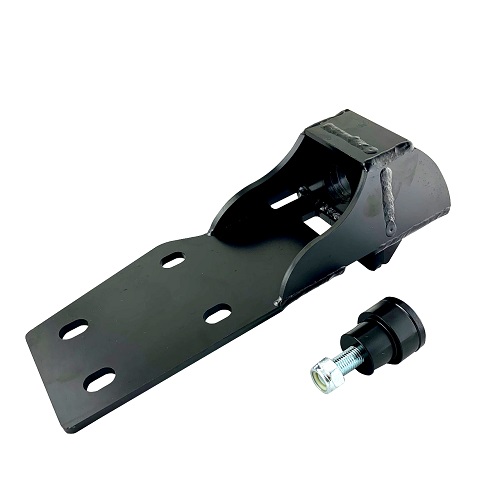

AX0354	NISSAN PATROL GQ-GU DROP BOX RH	Bolt-in	4"
