Leaf Spring Wedge

Leaf Spring Wedge
A range of Aupart Leaf Spring 'Caster' Wedges have been developed to suit for universal applications. Used on vehicles with front and rear leaf spring, Leaf Spring Wedges aid in correcting the caster angle and work to eliminate driveshaft vibration issues. Aupart Leaf Spring Wedges are manufactured at 63mm wide, with centre hole to allow for proper positioning in the spring pack & diff.

It is recommended to fit a 3deg wedge to the front when using extended shackles, with wedges also fitted to the rear where required. When fitting in the front the 'thickest' part of the wedge always goes toward the front of the vehicle. Aupart Leaf Spring Wedges are available in 4 sizes offering caster correction of 1, 2, 3 or 4 degrees.
  • Product Specifications
Part Number Application Degree

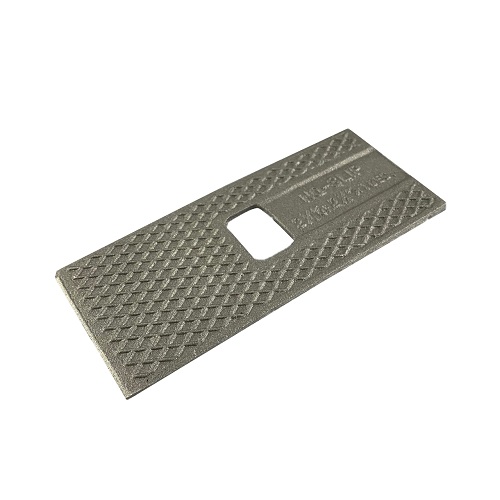

AX0258 UNIVERSAL CASTER WEDGE 4mm 1

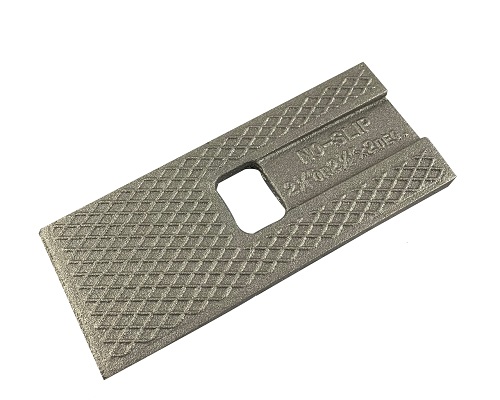

AX0259 UNIVERSAL CASTER WEDGE 8mm 2

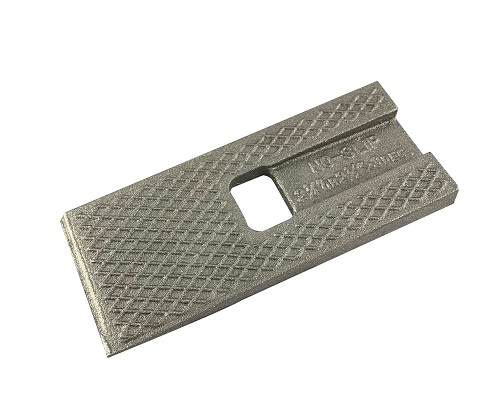

AX0260 UNIVERSAL CASTER WEDGE 10mm 3

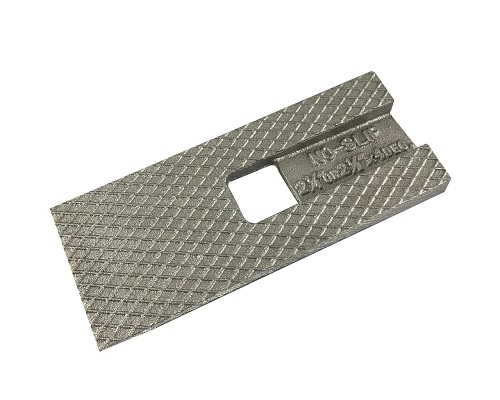

AX0293 UNIVERSAL CASTER WEDGE 12mm 4
